Fork-Pack

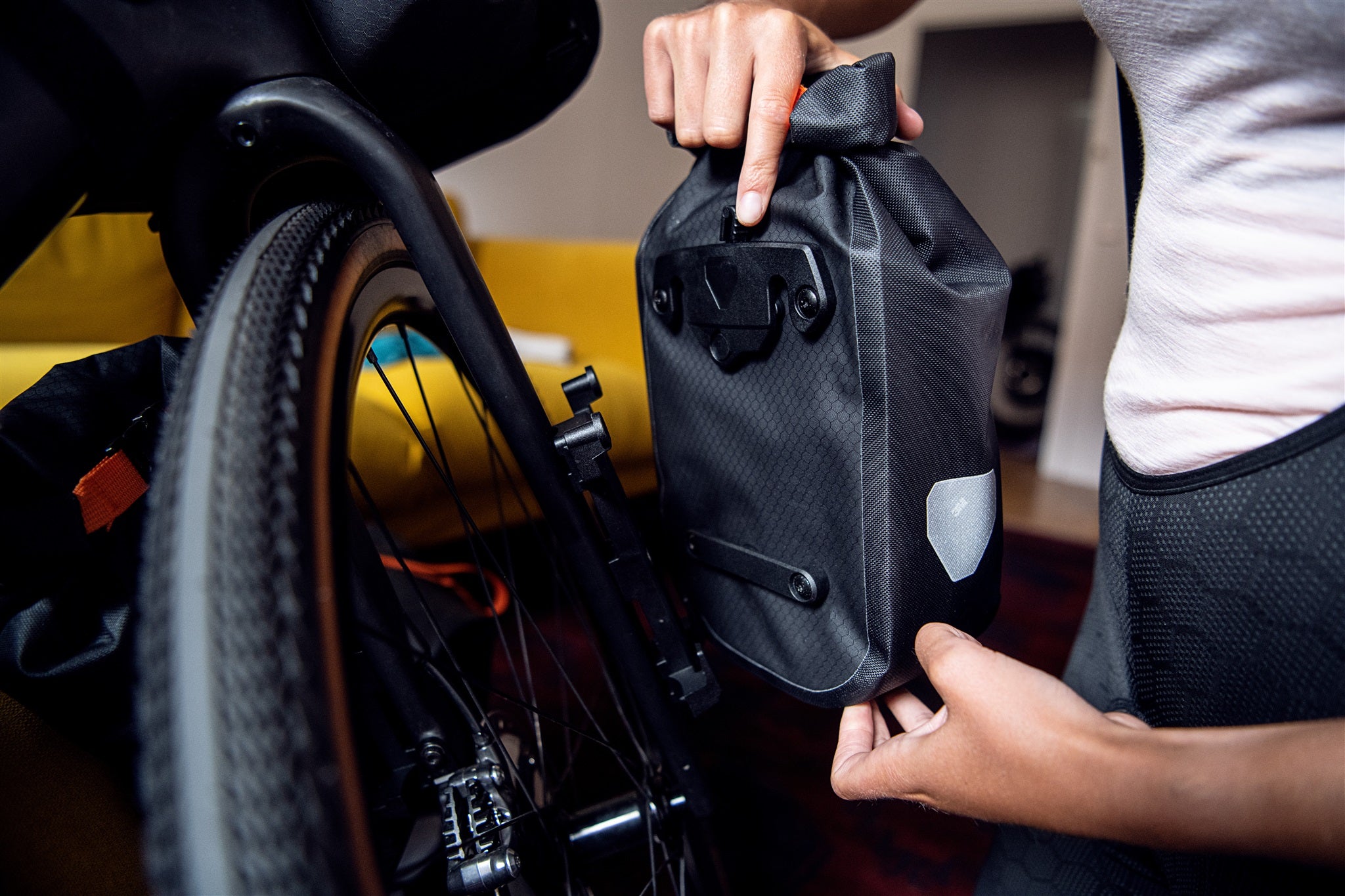

The Fork-Pack is the practical companion for your next Bikepacking adventure. It is ultra-light and, with the help of the Quick-Lock S adapter, can be taken on and off your bike in mere seconds.

Color: dark sand

Volume: 4.1 L

4.1 L 5.8 L

In stock Delivery time: 2-3 business days

SKU: F9994

£57.50

Tax included. at checkout

Fork-Pack

£57.50

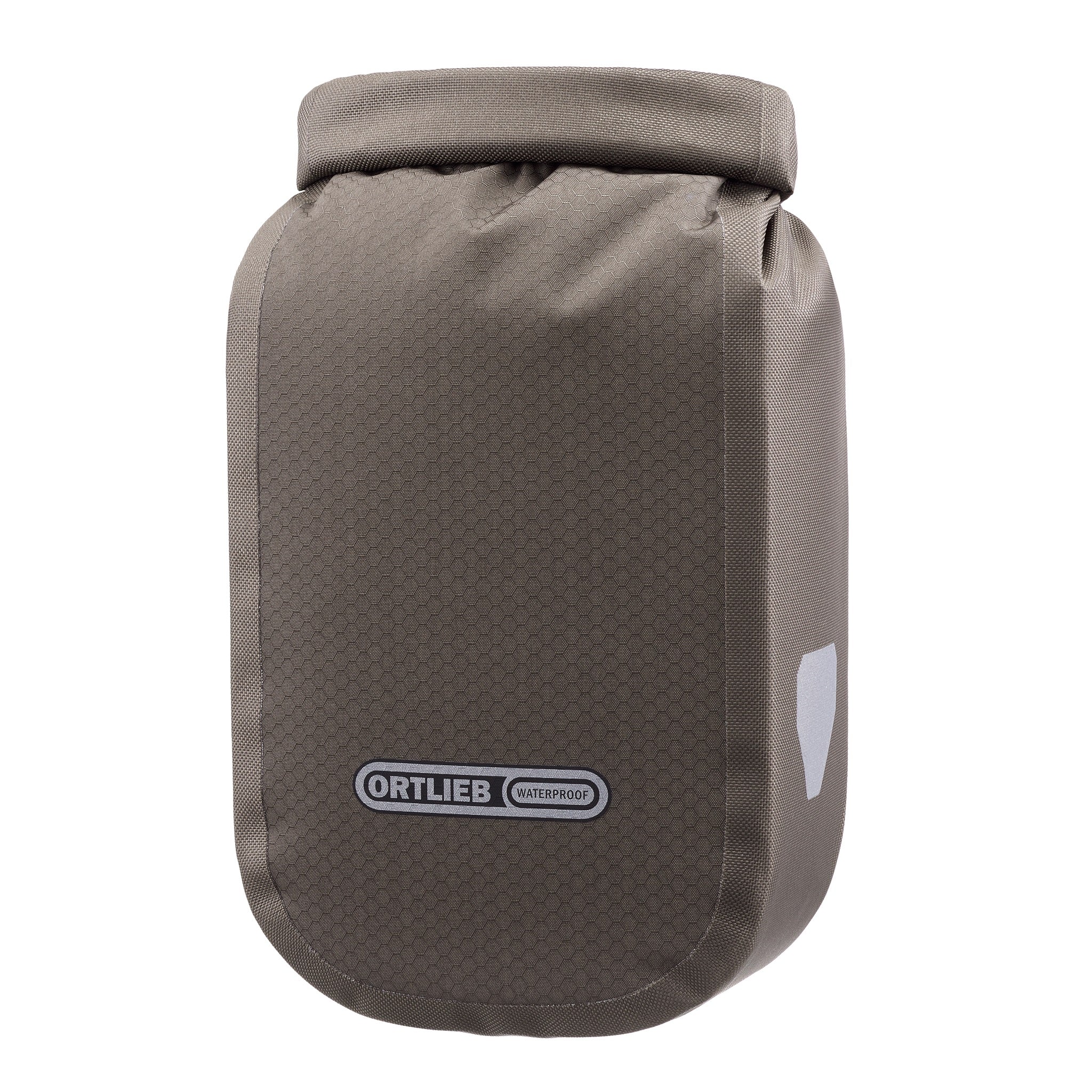

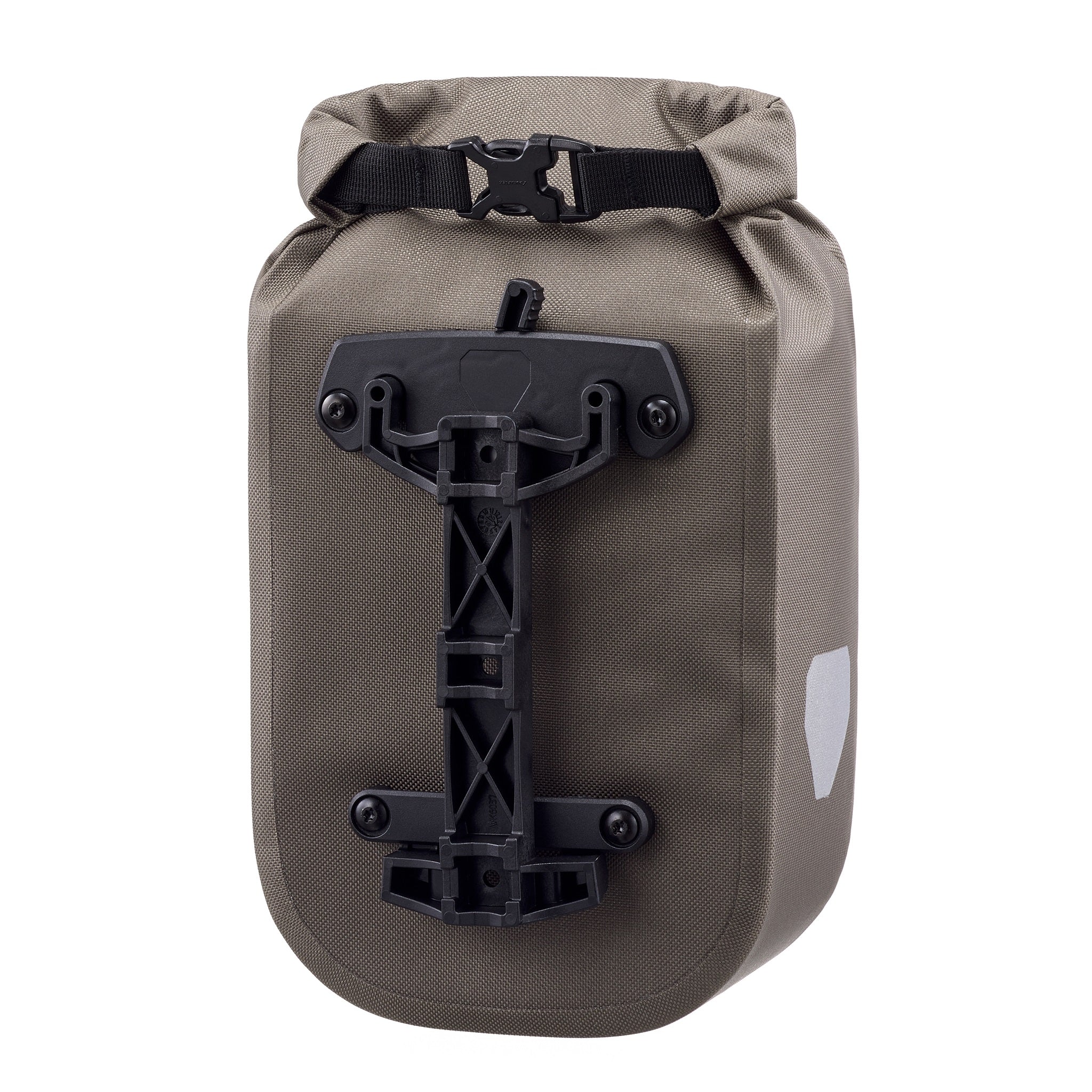

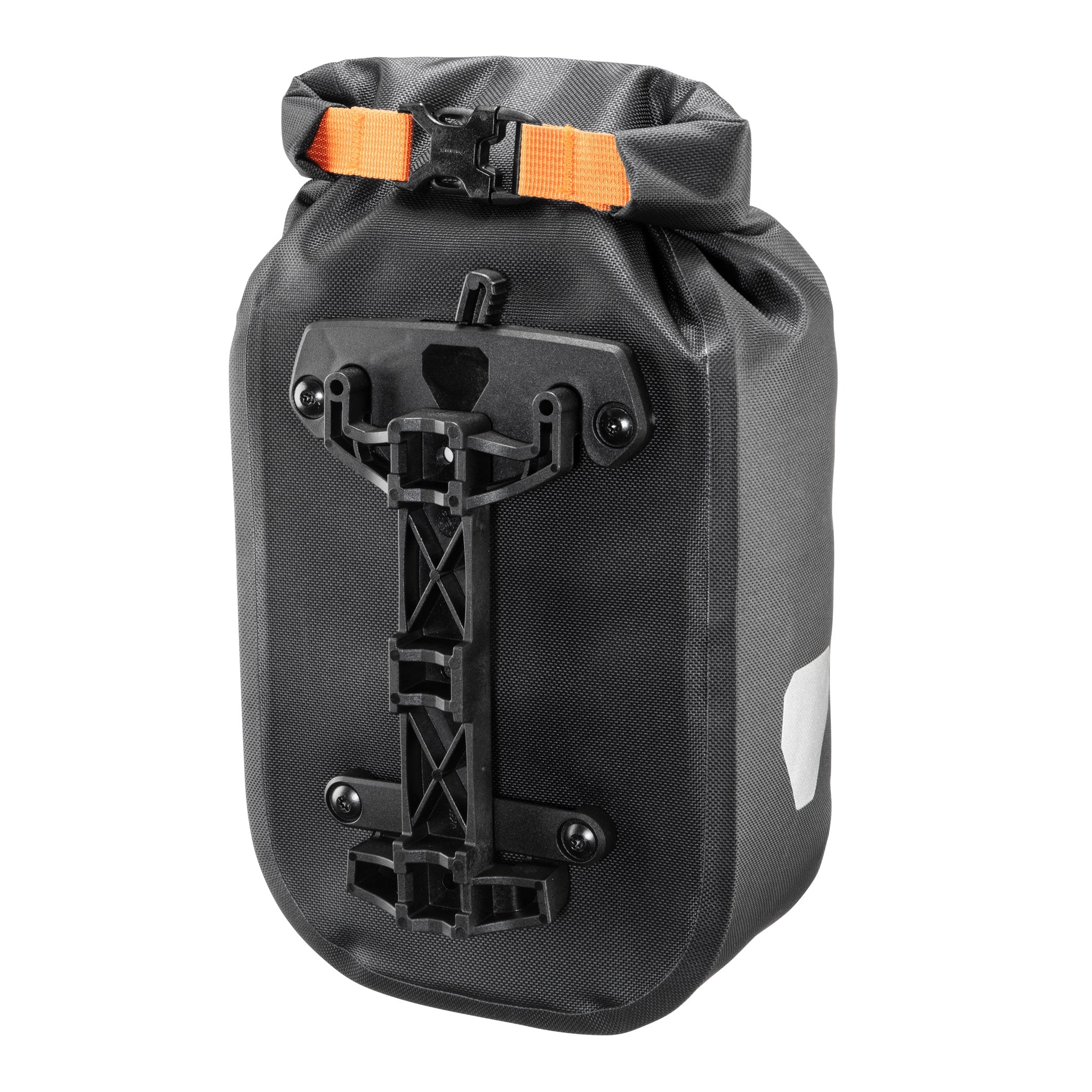

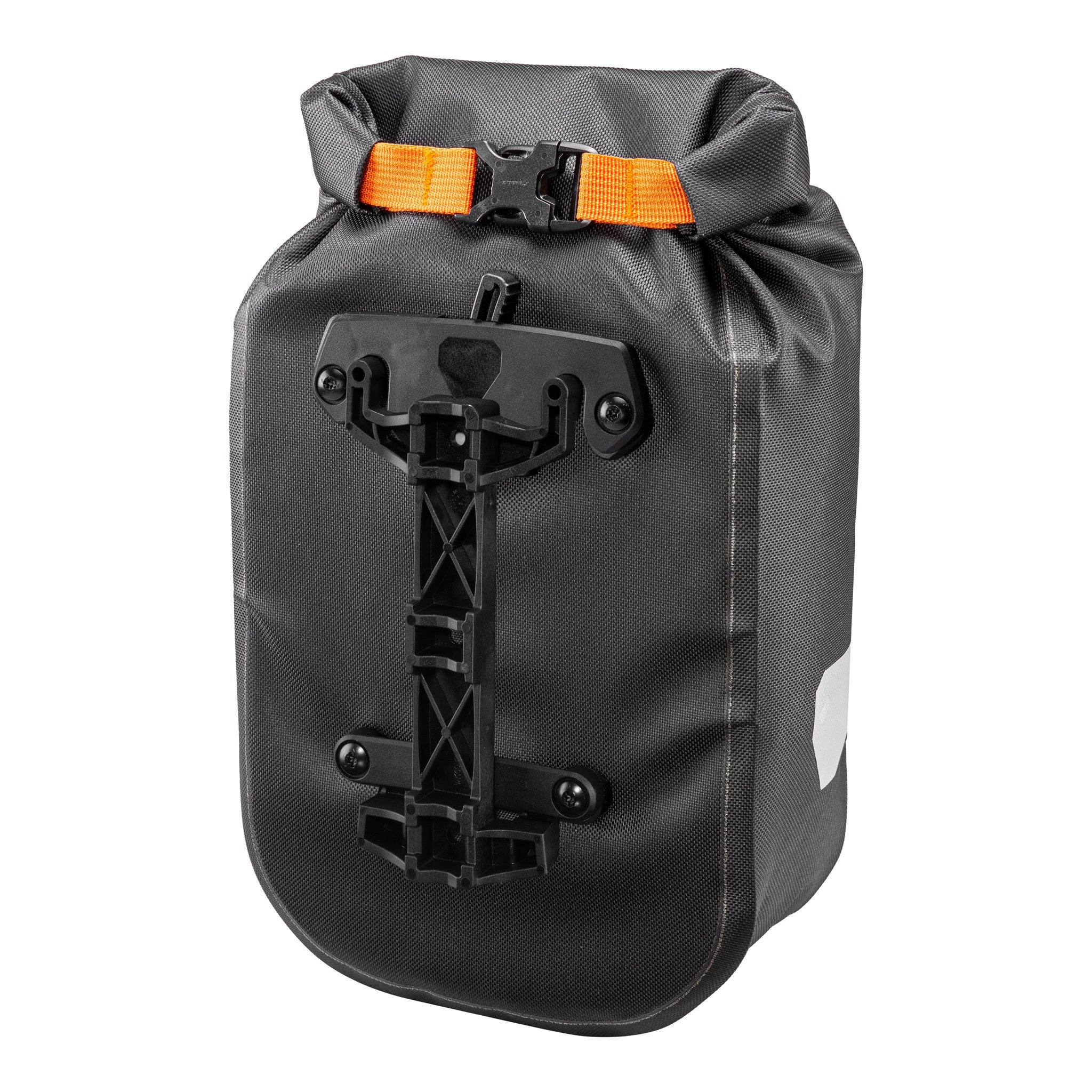

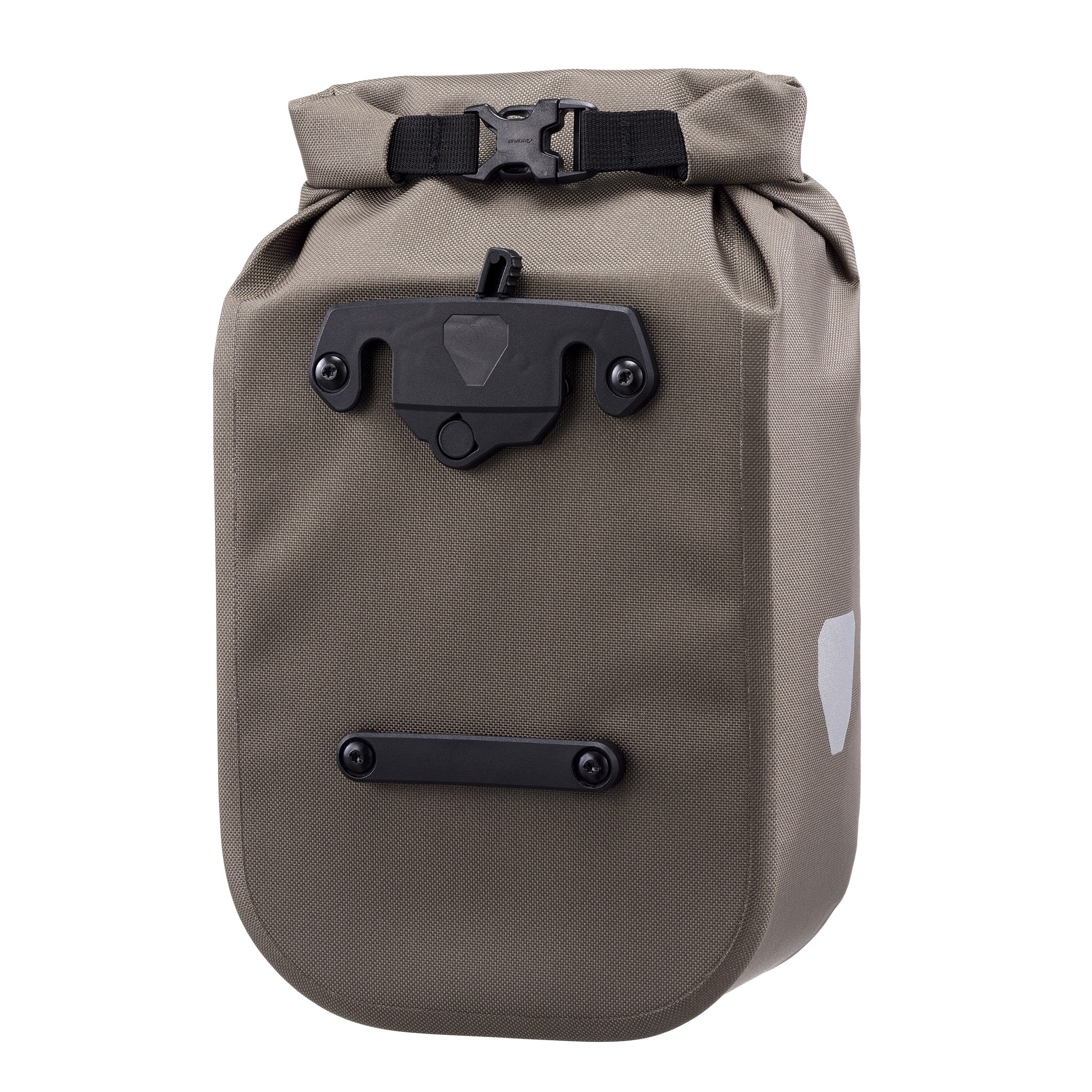

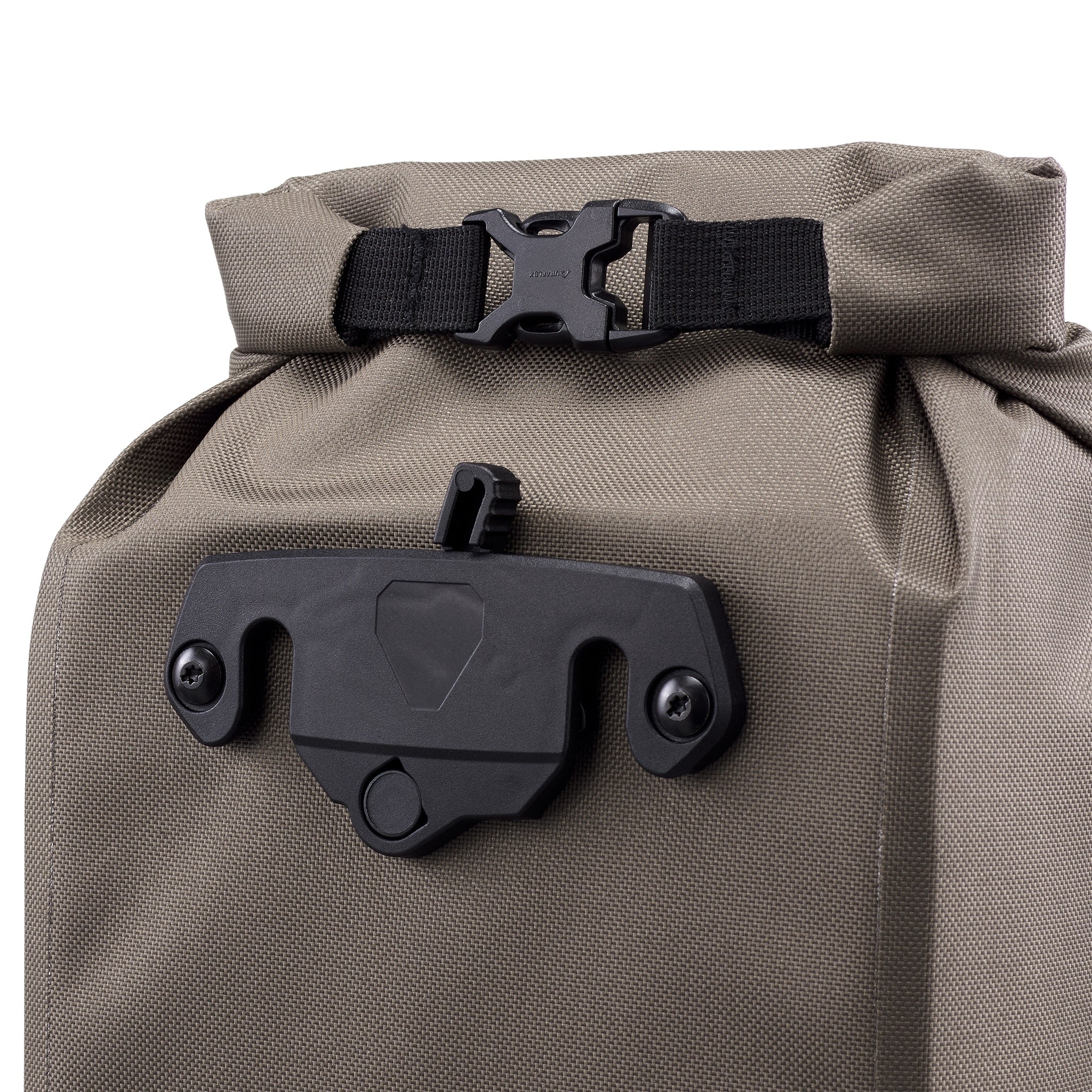

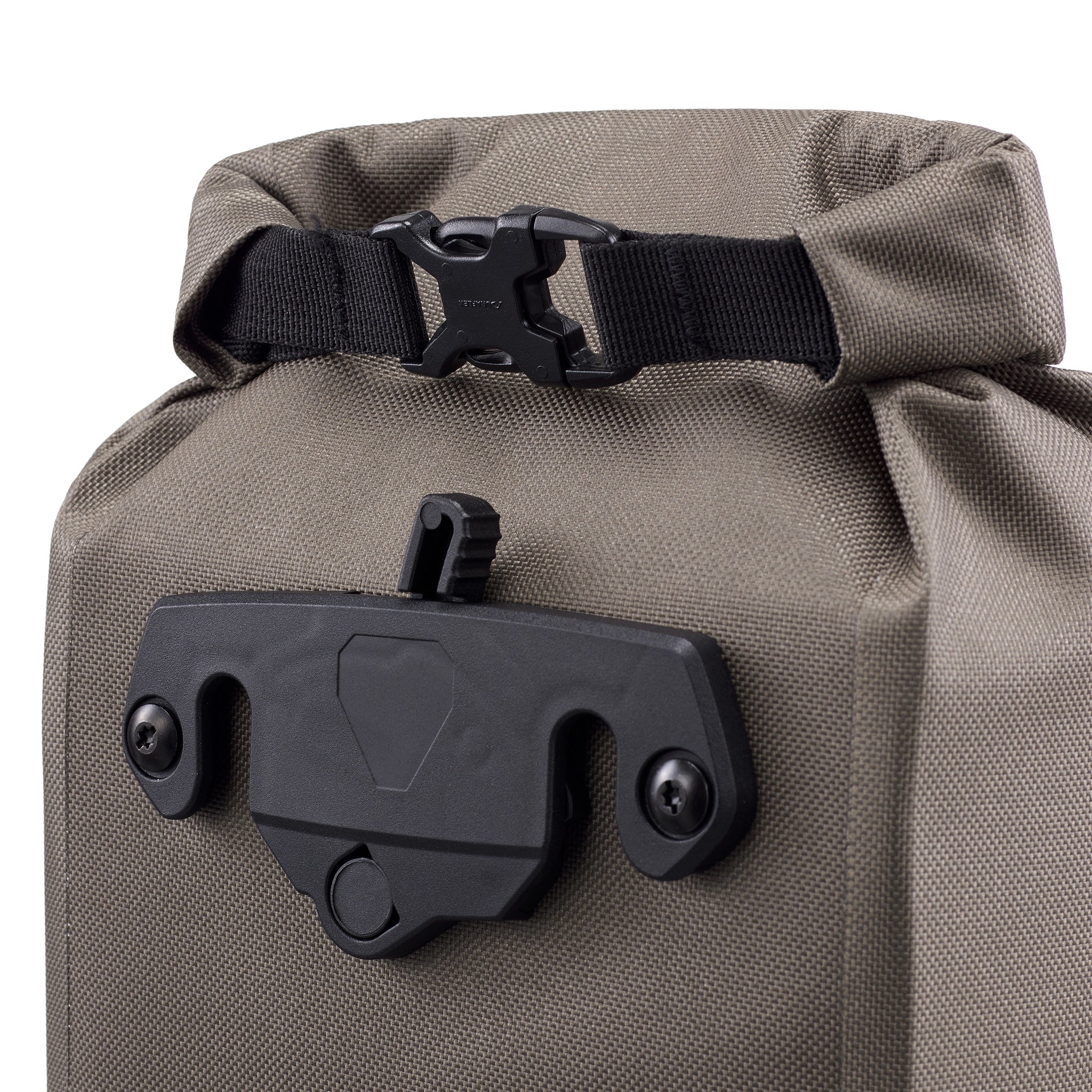

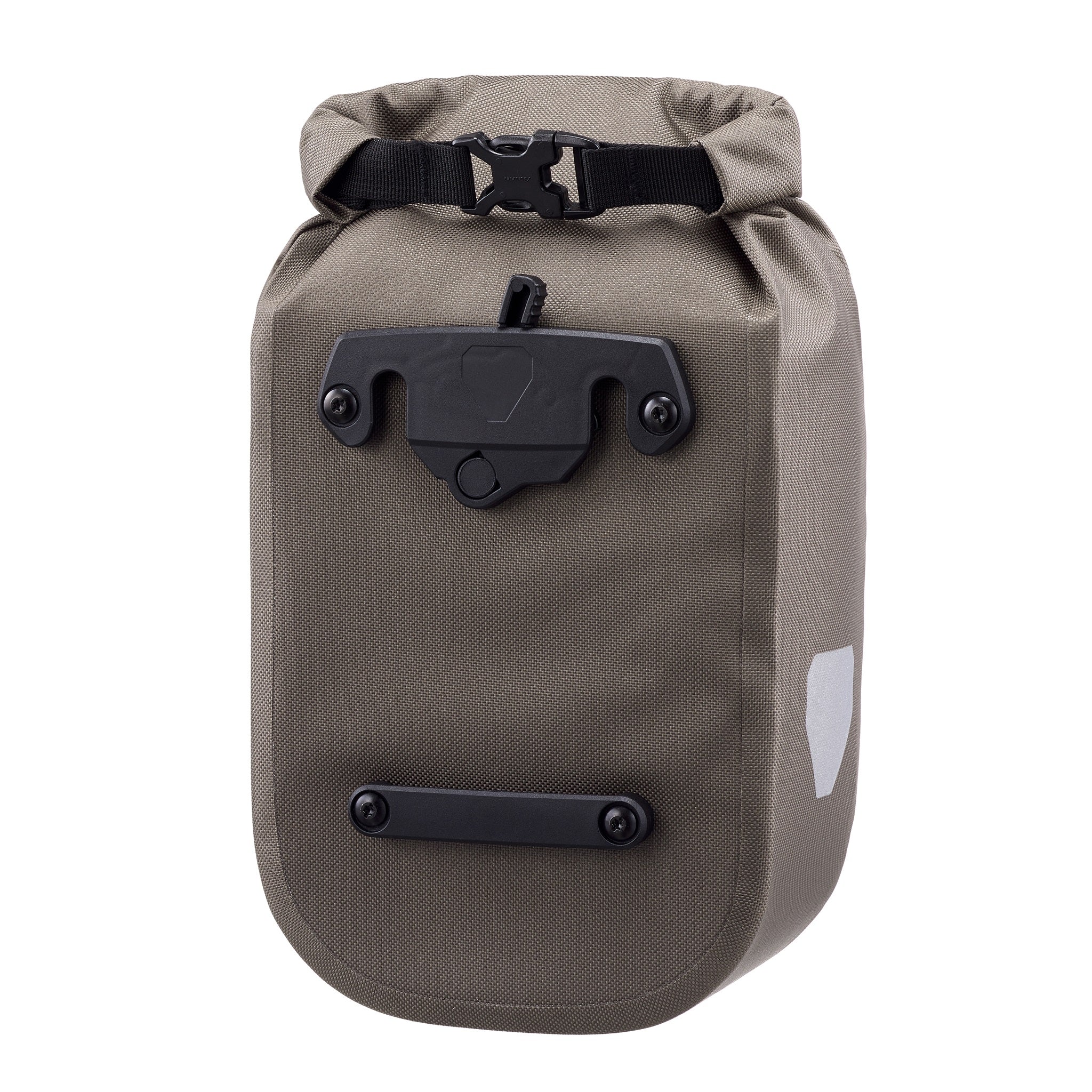

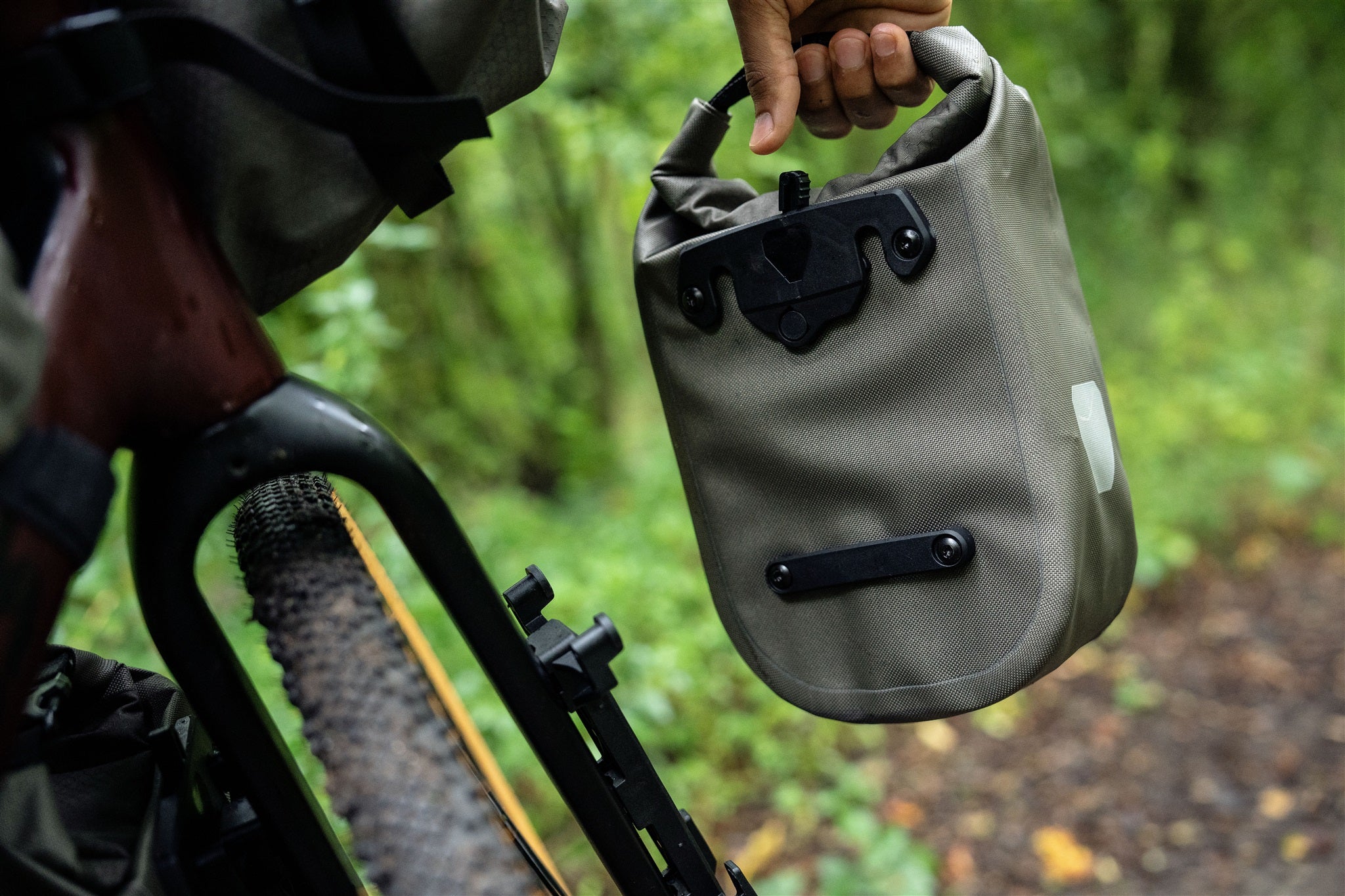

The waterproof Fork-Pack offers even more storage space for your next Bikepacking adventure. This practical fork bag weighs as little as 290 grams including the adapter (for the 4.1 L size, 315 grams in the 5.8 L size). With the help of the QLS adapter, this ultra-light bag can be mounted on forks with integrated accessory mounts, as well as on forks without special accessory mounts, as long as the fork legs have an untapered diameter between 30 and 42 mm. In fact, using the supplied adapters, you can attach the bag to any straight, vertical tube of that diameter. The bag features ORTLIEB’s tried-and-true roll top closure, and the included Quick-Lock S adapter system allows you to attach and detach the bag in no time. The Fork-Pack is made of PVC-free nylon fabric and sustainably produced in Germany.

Specifications

Height: 28 cm
Width: 17.5 cm
Depth: 11 cm
Volume: 4.1 L
Load: 3 kg
Weight: 290 g

Downloads

Instruction
Datasheet

Scope of delivery

1x Fork-Pack with QLS adapter plate including mounting accessories

Spare parts

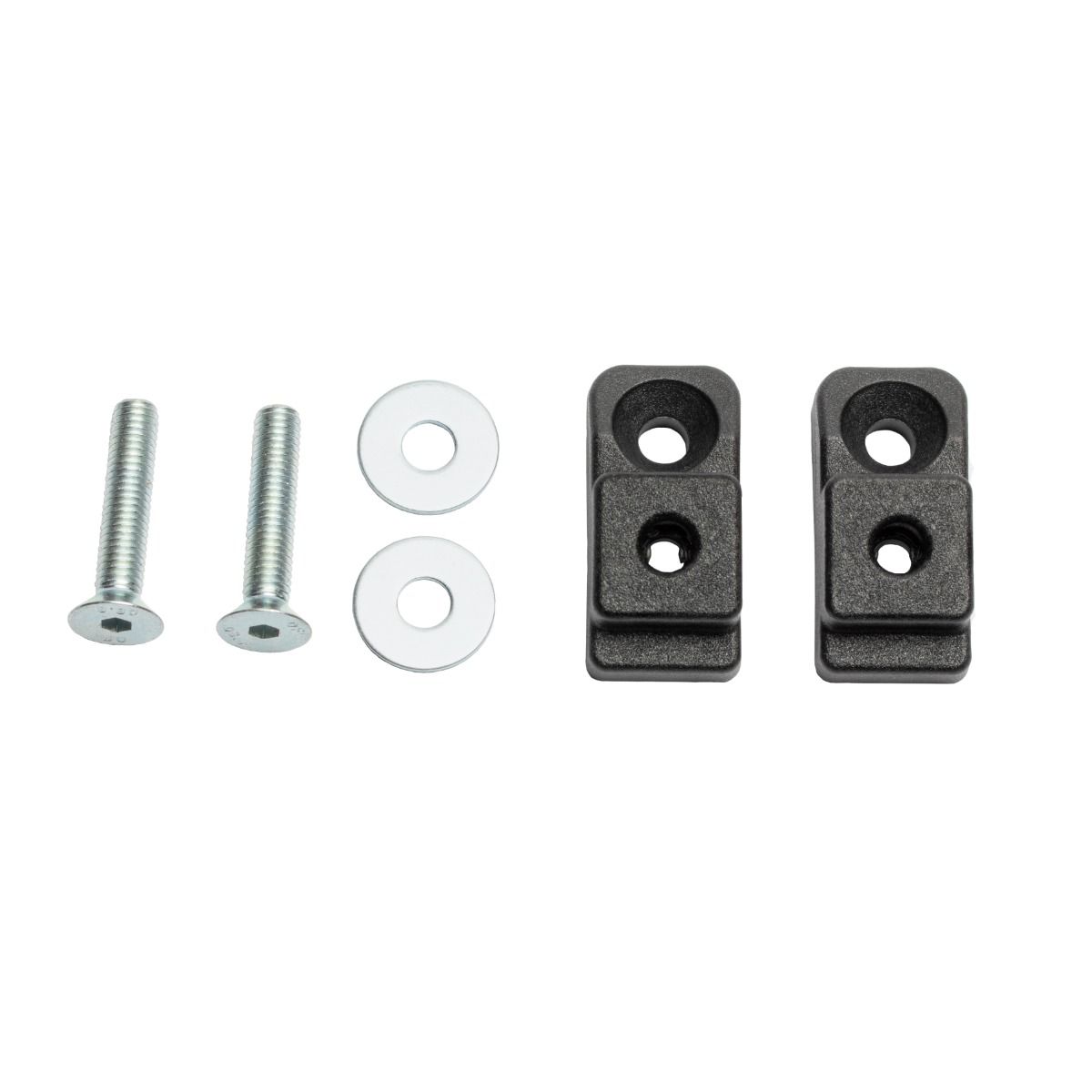

Screw set

QLS Mounting-Set Fork-Pack

Fork-Pack QLS Inserts

Warnings and safety information

Risk of injury due to incorrectly attached products! Before riding, check that the product is securely fastened.
Risk of injury from sharp edges! Use the enclosed shrink tubing and round off the edges at the ends, if the steel bands have been shortened to minimize the danger.
Risk of injury due to loosening parts and material fatigue! Refrain from jumping with the bike while the product is mounted on it.
Risk of injury due to loose components on the product. Screws can loosen over time due to vibrations. Therefore, check the screws after 10 km, 50 km, 100 km and 200 km and retighten if necessary.
Risk of injury due to material breakage if overloaded! Do not exceed the maximum payload of 3 kg. If necessary, weigh your load to ensure that you do not exceed the maximum payload.
Risk of injury if used with non-compatible forks! The product cannot be used with forks without bolt-on points that have tapered tubes or tubes made of carbon.

Manufacturer information

ORTLIEB Sportartikel GmbH
Rainstraße 6
91560 Heilsbronn
Germany
deinservice@ortlieb.com

Frequently Asked Questions

Can I use the Fork-Pack on a carbon fork?

The Fork-Pack can generally be used on carbon forks if they have the required three M5 mounts. Be sure to use the carbon protector or the special inserts as described in the instructions.

Is the Fork-Pack waterproof?

The Fork-Pack is waterproof according to protection class IP64. This rating indicates:

The product is completely dustproof and keeps splashing water safely away from all directions. It reliably protects the contents from dust, sand and rain, making it ideal for longer journeys in heavy rain or outdoor adventures in stormy conditions.

More about waterproofness

Can the ORTLIEB Fork-Pack also be used on the rear triangle of a bicycle?

The Fork-Pack is designed for mounting on the fork but can also be attached to other vertical tubes if the diameter fits and enough space is available. It is often used on the rear triangle of gravel or touring bikes to gain additional storage space.

Where is the Fork-Pack manufactured?

The Fork-Pack is manufactured in Heilsbronn, Germany, standing for genuine “Made in Germany” quality. Every production step, from material cutting to final inspection, takes place in our own facilities. Materials are sourced locally, regionally, or internationally according to strict requirements. Our high standards for raw materials extend the product’s lifespan and conserve resources.

More about Made in Germany

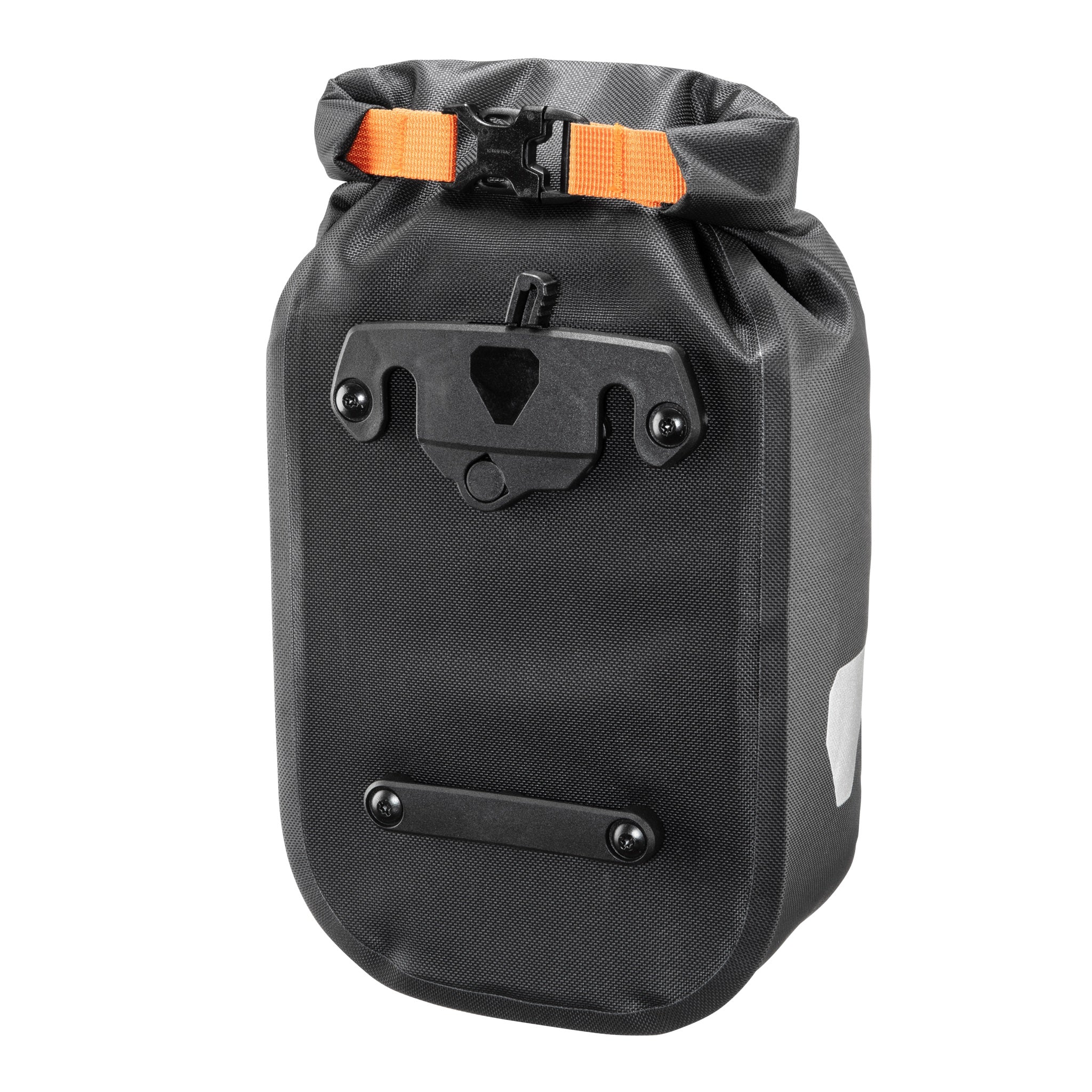

What is the hole spacing of the QLS adapter plate?

The three mounting points of the Quick-Lock S adapter follow the common industry standard for fork mounts and have a hole spacing of 64 mm.

Is it possible to mount the Quick-Lock S adapter plate using only two threaded eyelets?

Yes, this is generally possible. If your fork has only two threaded eyelets, you can still mount the adapter plate. The two outer holes of the bracket are sufficient to secure the bag. However, for optimal stability, we recommend using all three mounting points if available.

Can the ORTLIEB Fork-Pack also be mounted on forks with uneven tube diameters or without eyelets?

The Fork-Pack can be mounted on forks both with and without eyelets. The requirement is a consistent tube diameter between 30 and 42 mm. If your fork has no mounting eyelets, you can use the included metal straps for secure attachment. The system is not suitable for unevenly shaped or tapered fork tubes.

Is the Fork-Pack worth the price?

ORTLIEB products stand for durability and repairability. The Fork-Pack is manufactured in our factory in Heilsbronn, Germany. We source materials locally, regionally, or internationally depending on what meets our high standards. We invest time in development to ensure the functionality of every detail.

Thanks to long-lasting materials, the bag is a reliable companion. Its lifespan puts the purchase price into perspective, especially since we offer a five-year warranty on our products. A wide range of repair and upgrade options further improves the price-performance ratio.

Repair before replacement: Every product is designed to be easy to repair and can, in most cases, be serviced by our Customer Service team in Heilsbronn. This extends its lifespan and conserves resources.
