Saddle Bags

Overview

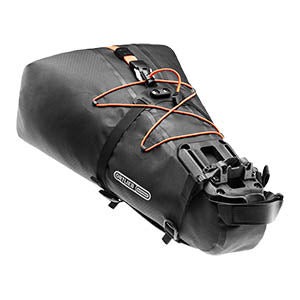

Angled view of an ORTLIEB Seat-Pack system, featuring a large waterproof saddle bag with an adjustable mounting system and external bungee cords for extra storage Seat-Pack QR

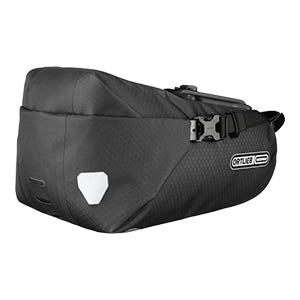

Side view of a black ORTLIEB saddle bag with reflective detailing, designed for secure attachment under a bike seat. Saddle Bag/ Micro

Seat-Pack QR

Mounting

OurSeat-Pack QR can be fixed to numerous saddles with the included mounting system.

Angled view of an ORTLIEB Seat-Pack system, featuring a large waterproof saddle bag with an adjustable mounting system and external bungee cords for extra storage

Compatibility notice

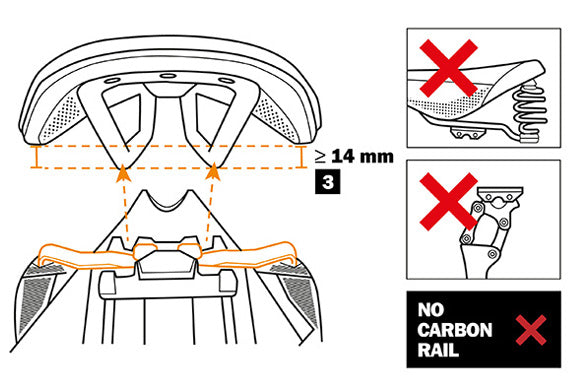

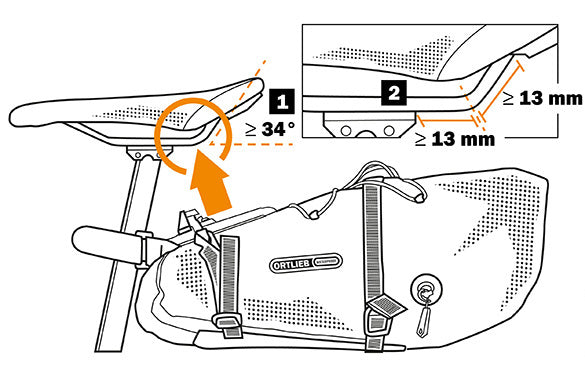

Diagram showing the correct saddle angle and dimensions for attaching an ORTLIEB saddle bag, highlighting a minimum 34° angle and 13mm clearance. Diagram illustrating saddle compatibility for ORTLIEB bags, showing a minimum 14mm clearance and warning against using carbon rails or suspension saddles.

Saddle Bag/ Micro

Mounting

Diagram showing the installation process of an ORTLIEB saddle mount, with screws and tools required for attaching the mount to the underside of a bike saddle.

Our seat post Saddle-Bags and Micro can be fixed to numerous saddles with the included mounting system.
For mounting the adapter the two plastic parts with screws must be fixed between the two rails of the saddle (see drawing below). The distance should be between 45 and 60 mm (1.8 and 2.4 in.).

Compatibility notice

Diagram showing an ORTLIEB saddle bag mounted beneath a bike seat with suspension springs, securely attached using straps and a buckle system

For the model Saddle-Bag we offer a strap set (article code F96E) which allows mounting to comfort saddles or saddle with incompatible rail distance (e.g. Brooks) (see drawing below).
